Fast Curing Enhanced Adhesion Epoxy Electric Insulation Powder Coating with Smooth, Continuous Surface
Introduction:
This series of products is one kind of thermoset pure epoxy powder coating based on epoxy polyester and epoxy curing agent. It has excellent adhesion with metal substrates to achieve zero distance contact between busbar and insulating layer to avoid potential safety hazards. Fast and convenient construction, rapid curing at medium temperature, with smooth and continuous surface, beautiful appearance and excellent electrical characteristics.
Property:
--- High density film, extraordinary adhesion.
--- Excellent electrical insulation property.
--- Outstanding thermal and electrical properties.
--- Flexible curing reaction speed according to customers’ demands to meet different spraying requirement.
--- Without weather resistance and can not be directly used outside.
--- UL certified, ASTM approved.
Desity: 1.2~1.8g/cm3( Ingredient and color demand)
Particle Size: Purpose demands, standard granularity is 50-60 um
Gel time: Designed flexibly according to customers’ painting condition.
Flowing: 17-30mm, depends on customers’ requirements
Storage stability: 12 month below 30℃ in a dry and well ventilated place.
Film Characteristics:
| Property | Method | Value |
| Appearance | Visual | smooth, slight orange peel is allowed, no sagging |
| Impact | GB/T1732-93,80μm | ≥ 50 Kg.cm |
| Breakdown Strength (normal) | GB6554-2003 | ≥ 35 kv/mm |
| Volume Resistivity (normal) | GB6554-2003 | ≥ 10^14 Ω.cm |
| Water Absorption (boiling for 2h) | GB/T1738 | < 1.5% |
| Comparative Leakage Mark Index | CTI600 | GB6554-2003 |
| Inflaming Retarding | UL 94-1996 | V-0 |
| Tension | ASTM E8/E8M-11 | ＞5% |
| Spraying | Recommended coating thickness:≥300μm |
| Curing Guide | 120-230℃/5-30min,can be adjusted according to customers’painting condition. |
Field of Application:

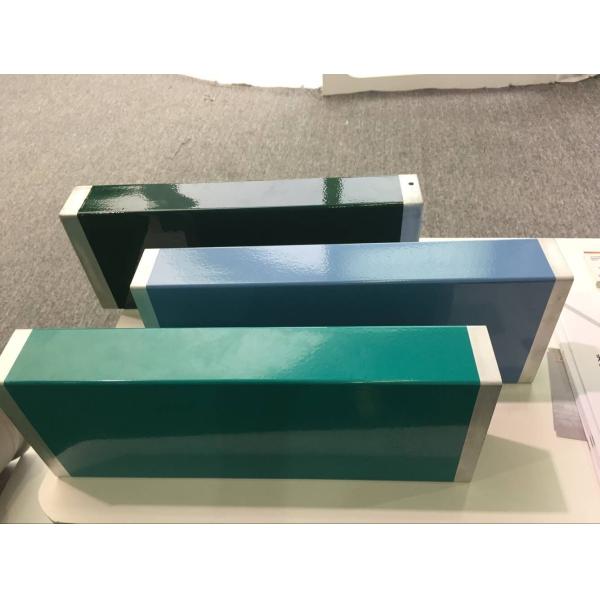

Epoxy electic insulation powder coating is mainly used for the painting of metal substrates such as busbar ,rotor, stator, transformer, magnet wire etc, which has high demand on the insulation.
It can be applied to the hot dip coating process. Firstly, heat the coated workpiece to a temperature above the melting point, and then dip and apply powder. After the powder adheres to the surface of the heated workpiece, it begins to melt and flow, and then solidifies and adheres to the surface of the coated object to form a smooth, continuous and uniform coating. The coating can effectively wrap the plane, turning foot and even concave convex points of the coated object.
Packing and Transportation :
Pack in box with net weight 20 or 25kg.
Non-dangerous article, no special transportation requirement.
Avoid from direct sunlight, moisture, heat and chemicals.
Shelf life, 12 month below 30℃ in a dry and well ventilated place.
Health and Safety :
Please refer to the MSDS.
