FBE Powder Coating with Excellent Corrosion Protection, Epoxy Resin Powder Coating for Oil Pipelines
◎Introduction
The KT-201 thermosetting epoxy powder is designed to protect pipelines from corrosion in the most demanding operating environments. This product has excellent properties of corrosion resistance and can be wildly used in anti-corrosion for steel pipelines carrying oil, gas and water and others.
This product has been certified to meet the requirements of CSA Z245.20-18 standard.
◎Product Features
The film has high density and adhesion.
Excellent chemical corrosion resistance.
Excellent physical mechanical properties.
Curing reaction speed can be adjusted according to the customer request to satisfy the requirement of different spraying.
◎Powder Properties
| Items | Acceptance Criteria | Test Result | Test Standard |
| Color | Various | Various | Visual Color-Pass |
| Cure Time (232±3℃, min) | ≤3min | 1 | CSA Z245.20.14 Section 12.1 |
| Gel Time (205±3℃, s) | 10-30 | 22 | CSA Z245.20.14 Section 12.2 |
| Moisture Content, % | ≤0.6 | 0.29 | CSA Z245.20.14 Section 12.4 |
| Particle Size | ≥150µm, % | ≤3.0 | 2.5 | CSA Z245.20.14 Section 12.5 |
| ≥250µm, % | ≤0.2 | 0 |
| Density (g/cm3) | 1.45±0.05 | 1.46 | CSA Z245.20.14 Section 12.6 |
| Thermal Properties | Tg1, ℃ | 50-70 | 58.33 | CSA Z245.20.14 Section 12.7 |
| Tg2, ℃ | ≥100 | 102.56 |
| ΔH, J/g | 35-60 | 39.58 |
| Shelf Life @25℃ | 12months |
| Theoretical Coverage | 0.69 m2/kg/mm |
◎Film Properties
| Items | Acceptance Criteria | Test Result | Test Standard |
| Recommended Film Thickness (µm) | ≥300 |
| Thermal Properties | ΔTg ≤3℃ | 0.79 | CSA Z245.20 Section 12.7 |
| Cathodic Disbondment | 24 Hours, -3.5V, 65℃, ≤6.5mm 28 Days, -1.5 volt, 23℃, ≤8mm 28 Days, -1.5 volt, 65℃, ≤10mm 28 Days, -1.5 volt, 95℃, ≤15mm | 1.1 1.3 4.5 5.6 | CSA Z245.20 Section 12.8 |
| Porosity | Cross-section, Rating ≤3 Interface, Rating ≤3 | 1 2 | CSA Z245.20 Section 12.10 |
| Flexibility | bending, -30℃, 3°, No Cracking | No Cracking | CSA Z245.20 Section 12.11 |
| Impact Resistance | 1.5J, -30℃ | No Holidays | CSA Z245.20 Section 12.12 |
| 2.5° Strained Coating | 28d Cathodic disbondment | No Holidays | CSA Z245.20 Section 12.13 |
| Adhesion, Rating | 24 Hours, 75℃, 1 Rating | 1 | CSA Z245.20 Section 12.14 |
| 28d, 75℃, 1-2 Rating | 1 |
| 28d, 95℃, 1-2 Rating | 2 |
| Tabor Abrasion | Cs-17 1kg 5000r ≤300mg | 200 | ASTM D4060 |
| Hardness | Shore hardness ＞80 | 87 | ASTM D2240 |
| Pull-Off Adhesion | ＞20MPa | 35MPa | ASTM D4541 |
| Volume Resistivity | ＞1.0*1015 Ω-cm | 2.0*1015 | ASTM D257 |
| Dielectric Strength | ＞30 MV/m | 43.5 | ASTM D149 |
| Chemical Restraints | 10% NaCl Solution, 30d, 23℃ No blistering or disbondment | Pass | ASTM G20 |
| 10% NaOH Solution, 30d, 23℃ No blistering or disbondment | Pass |
| 10% HCl Solution, 30d, 23℃ No blistering or disbondment | Pass |
| 20% Na2CO3 Solution, 30d, 23℃ No blistering or disbondment | Pass |
| 5% HAc Solution, 30d, 23℃ No blistering or disbondment | Pass |
| 30% H2SO4 Solution, 30d, 23℃ No blistering or disbondment | Pass |
| 10% HNO3 Solution, 30d, 23℃ No blistering or disbondment | Pass |
| Methyl Alcohol 30d, 23℃ | Pass |
Note: prepare specimens process
1) abrasive blasting to Sa2.5 near-white metal with surface profile of 50-100 microns. Then, cleaning the surface with high pressure gas
2) Put the specimen into the oven (200℃), preheat 40-60 min.
3) Spray the powder to the preheated specimen with electrostatic spray gun, then put it to the oven, keep 5-10 minutes at 200℃
4) The dry film thickness is 350±50µm.
◎Coating Reference
1. Application: Factors such as plant capability, specifications, and pipe construction or characteristics can affect application conditions. The recommended application temperature range is 200-220ºC.
2. Surface Preparation: Remove all surface contamination before abrasive blasting. Blast clean using steel grit to Sa2.5 near-white metal with a minimum surface profile of 2 mils/51 microns.
◎Precautions
1. All data are based on laboratory testing and practical experience.
2. It is recommended that the product should pass process evaluation before mass use, so as to avoid unnecessary loss to customers due to various reasons such as process.
◎Package and Storage
1. The package is 25kg per box, lined with polyethylene plastic bags. In the course of shipment, it should be loaded or unloaded lightly and avoid direct sunlight and heat and moisture.
2. The product should be stored in a cool, ventilated, dry room with temperature below 25℃ and humidity below 65%.
3. Keep away from fire and heat and tide.
4. After use, it should be sealed in time to prevent powder from being been polluted and damped.
5. Reduce the number of movement to avoid impact and pressure.
6. The maximum stacking height should not exceed 5 layers.

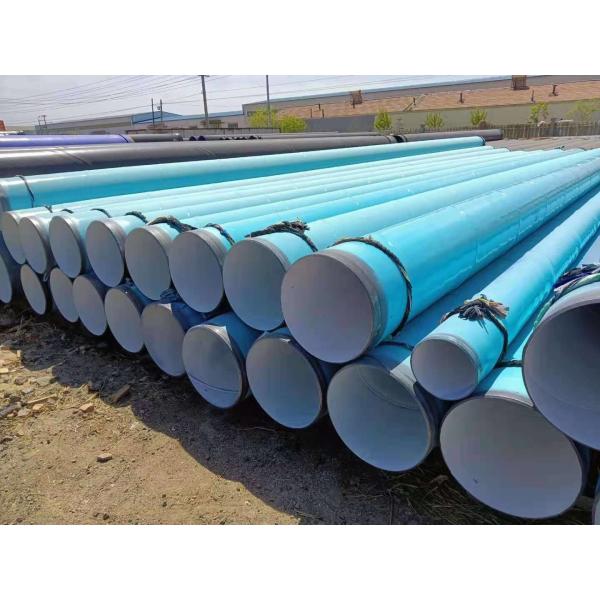

◎Product Show
